Monday, 12 July 2010

ISA 106 - a Simple Hierarchy diagram

Just an initial proposal!

Saturday, 10 July 2010

Suggestion for ISA 106 - The Production Run

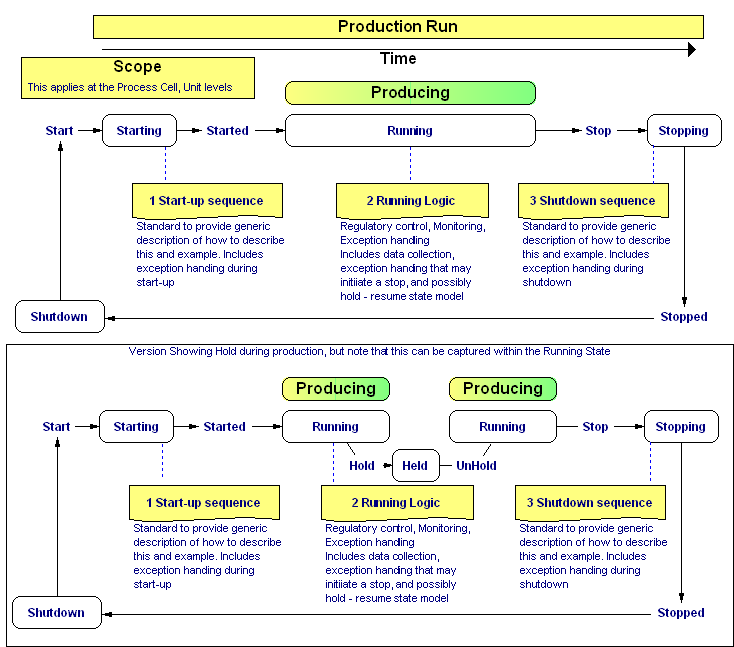

This ISA 106 Production Run overview diagram shows a suggested high level state model for a Production Run
A Production Run is a suggested new Term that covers the operation of a Unit or Process Cell from shutdown through Starting, Producing to Stopping and back to ShutdownThe Production Run
Click the diagram to see it full size
